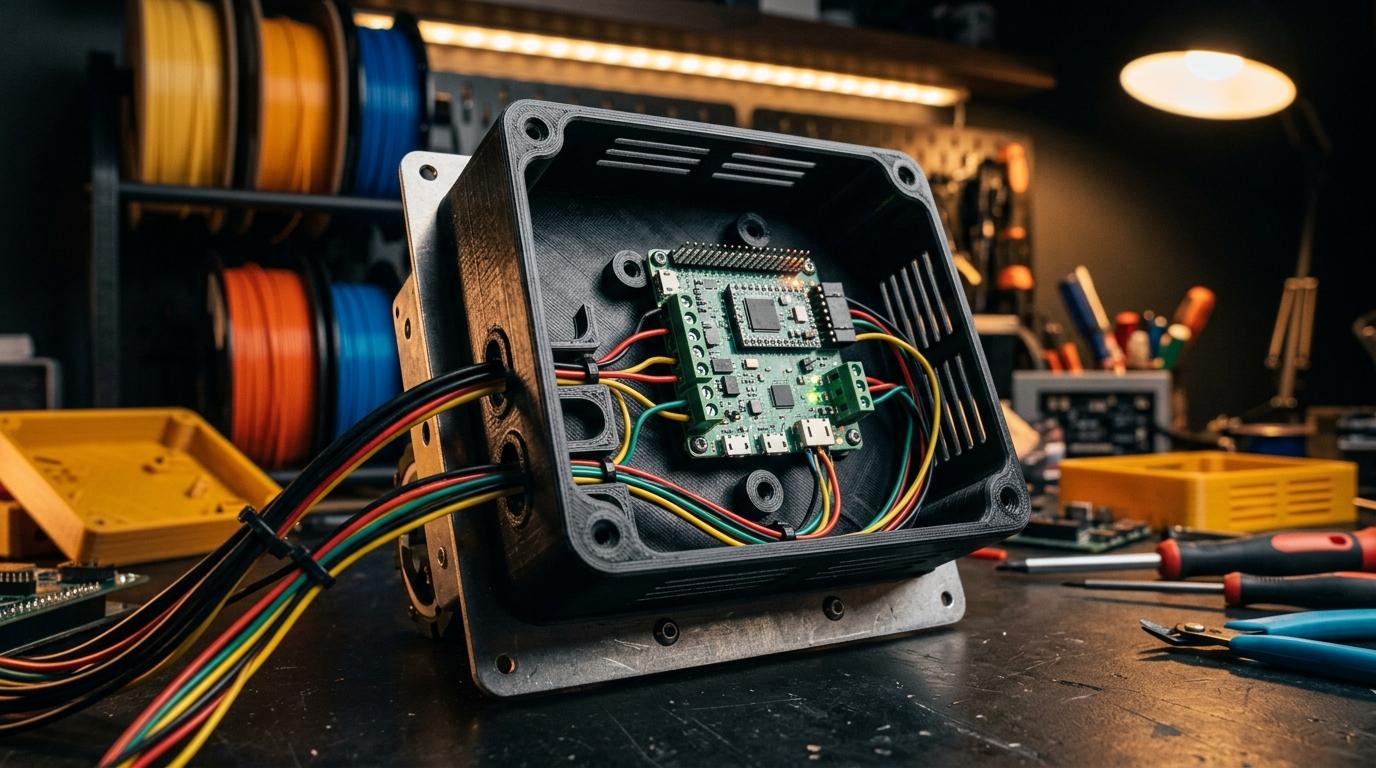

Designing Electronics Enclosures for FDM Printing

An electronics enclosure for a robotics project is one of the best FDM print applications — you need a custom size, you want it fast, and the requirements are mechanical rather than cosmetically demanding. The enclosure needs to hold a PCB, route cables, mount cleanly to the robot chassis, and survive the vibration and occasional impact of whatever the robot does.

This is achievable with FDM and straightforward design. The failures I've seen in printed enclosures usually come from carrying over injection-moulding or sheet-metal design conventions without accounting for how FDM behaves differently.

PCB mounting

Standoffs are the standard approach — posts inside the enclosure that the PCB mounts to via screws. FDM standoffs work well. Design them at 3–4mm diameter minimum for any standoff under 10mm height; taller standoffs need more cross-section.

For self-tapping screws into FDM plastic: a 2mm screw into a 1.7mm printed hole works, but the thread engagement is weak and fatigues quickly. Better: print holes sized for brass heat-set inserts and use machine screws. The heat-set insert approach is dramatically more reliable for any enclosure you'll open more than a few times.

For M2 and M2.5 screws (common for small PCBs): 3.5mm diameter holes for heat-set inserts, pressed in with a soldering iron tip. This takes a minute per insert and transforms the durability of the closure.

Wall thickness and rigidity

The minimum wall thickness for a structural FDM enclosure: 2 perimeters minimum, 3 preferred, at standard 0.4mm extrusion. This is approximately 1.6mm minimum, 2.4mm typical.

For any wall that takes a load — mounting flanges, areas where connectors are inserted and removed, walls with cutouts — go to 4mm or more. Thin walls with large cutouts are the most common structural failure mode in printed enclosures.

Ribbing: internal ribs dramatically improve rigidity without much material. A 1.6mm rib running perpendicular to a large flat wall takes almost no print time and prevents flex. Treat large flat surfaces with suspicion and add ribs or embossed features to stiffen them.

Cable routing and connectors

Cable routing is the most commonly neglected aspect of enclosure design. A cable that exits through a random hole at an inconvenient location will stress the solder joint every time the robot moves. Design the routing.

Strain relief: print a channel or clip that holds the cable in a fixed path before it reaches the PCB connector. The cable should be able to flex, but not in a way that stresses the connection.

Connector cutouts: size these with at least 0.5mm additional clearance per side. Printed holes are always smaller than designed. Test with a calliper before finalising.

Connector ports: if a connector will be inserted and removed regularly (USB, barrel jack, JST), add a reinforcing wall or frame around it. Thin walls next to connector ports crack from repeated mechanical loading.

Closure and sealing

For a dry environment: snap fits or screws. Snap fits are convenient for enclosures you open regularly; screws give better retention for something that stays closed.

For light water resistance: a gasket groove with a silicone cord gasket. FDM can print a groove accurately enough for an O-ring or rope gasket. The closure faces need to be flat — this usually means designing the mating surfaces to be in the XY plane (printed flat). Z-surface flatness on an FDM print is not reliable without post-processing.

Don't rely on FDM layer bonding for waterproofing. The layer interfaces are the weakest point and are permeable to water. Coating the print with a layer of epoxy or sealant is the practical approach for any genuine water-resistance requirement.
