Getting Drone Parts Printed in Bangalore — What to Know

If you're building a drone in Bangalore, you've probably been through the lead-time frustration. Imported frames and components that come from overseas can take two to three weeks. Indian distributors have better availability for common parts but thin stock on anything non-standard. If your frame breaks mid-project, or if you're building something custom, you're often waiting.

FDM printing offers a way around a significant chunk of this. Not for everything — structural components that take crash loads need design care, and FDM is not the right choice for every part. But for motor mounts, camera mounts, standoffs, battery trays, antenna brackets, GPS masts, and plenty of other parts: FDM is fast, cheap, and works.

Parts that print well

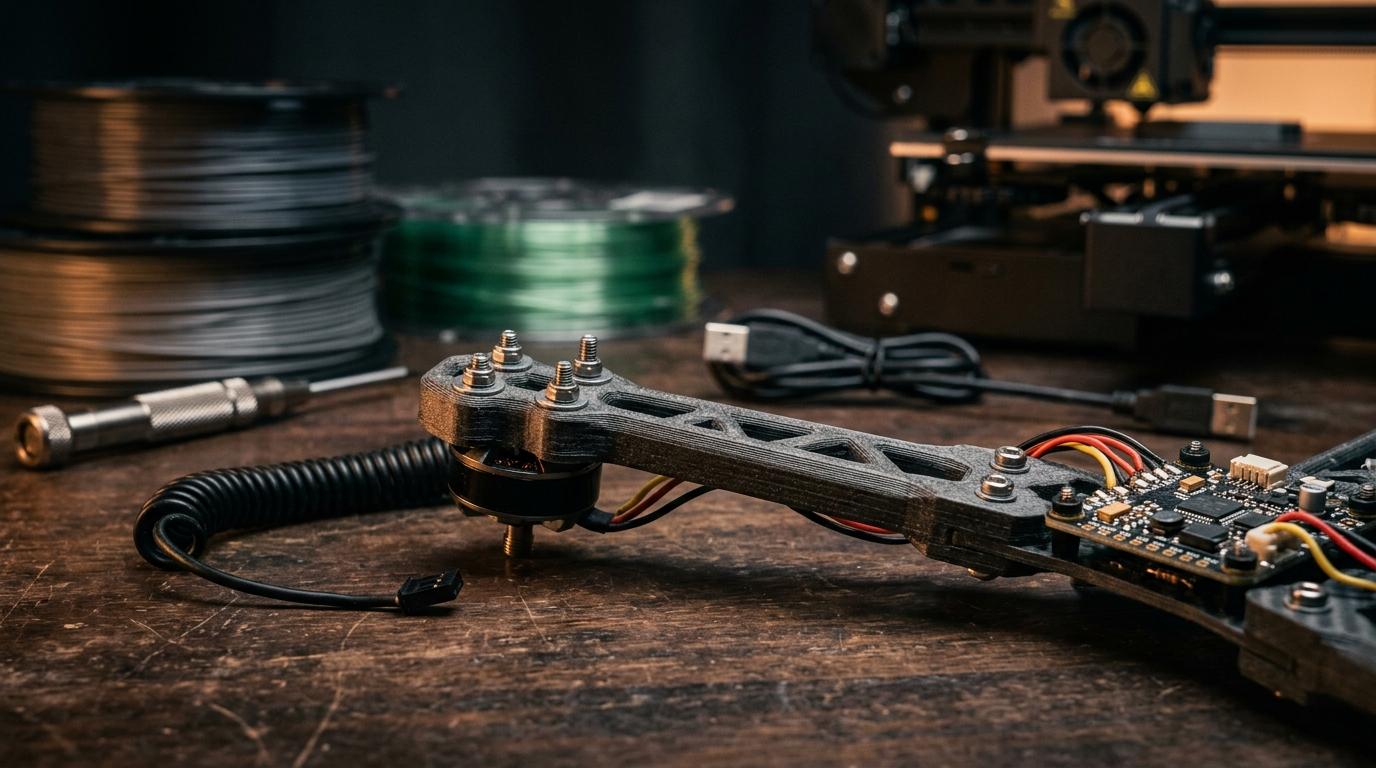

Motor mounts: classic FDM application. A motor mount takes compressive and tensile loads along known axes. If designed with reasonable wall thickness and infill, PLA or PETG handles it well for sub-5" builds. For larger motors, or for builds that take significant crashes, PETG gives better impact resistance.

Camera mounts and antenna brackets: these take light loads and often need to be soft-mounted or adjustable. FDM gives you the geometry freedom to design exactly the angle and adjustability you need. Print in PLA — the weight savings matter here.

GPS masts: great FDM part. Needs to be tall and light. FDM with low infill and thin walls is perfect.

Battery trays and straps: usable in FDM, but design the flexibility you need. TPU is ideal for battery straps (not all print services offer this). A rigid PETG tray works well for velcro-strapped batteries.

Landing legs: straightforward FDM application, PETG preferred for impact resistance on landing.

Parts where FDM needs care

Frame arms on larger builds: the long span of a frame arm under crash load is a significant structural test. For small builds (under 5"), well-designed PLA or PETG arms can work. For larger builds, carbon fibre is much better. FDM frame arms for racing quads are possible but should be considered experimental.

Anything with thin cross-sections under high torque: motor mounts that cantilever a heavy motor far from the attachment point, for example. FDM doesn't have the tensile strength in thin sections that carbon or aluminium does. Design with this in mind — add gussets, increase section, or switch to a different material.

Propeller adapters and anything near the motor directly: the high RPM vibration environment is hard on layer bonds. Parts in this location should be threaded metal or machined.

Getting parts printed in Bangalore

For small to medium drone parts, same-day or next-day printing is available in Bangalore. If you upload an STL before noon, a local print service can often have the part ready that day or early the next morning — vs. two weeks or more for overseas sourcing.

The cost is usually modest: a motor mount or camera bracket typically costs a few hundred rupees in material and service, which is competitive with the retail cost of similar injection-moulded parts.

For one-off custom parts or when you need to test a design quickly before committing to a more permanent solution, local FDM is hard to beat on the combination of speed and cost.
