Oscilloscope Basics — What It Shows and When You Need One

A multimeter is a snapshot instrument. It samples a signal and gives you a number — typically an RMS or average value over a short window. For DC signals and slow-changing quantities, this is usually sufficient.

For signals that change fast — communication buses, PWM outputs, switching supply ripple, sensor signal edges, oscillator outputs — a number tells you almost nothing. What you need is a picture of the signal over time. That's what an oscilloscope provides.

The moment you first see a signal on an oscilloscope that you've been trying to debug with a multimeter is one of those expansions-of-understanding moments in electronics learning. Suddenly you can see what the circuit is actually doing.

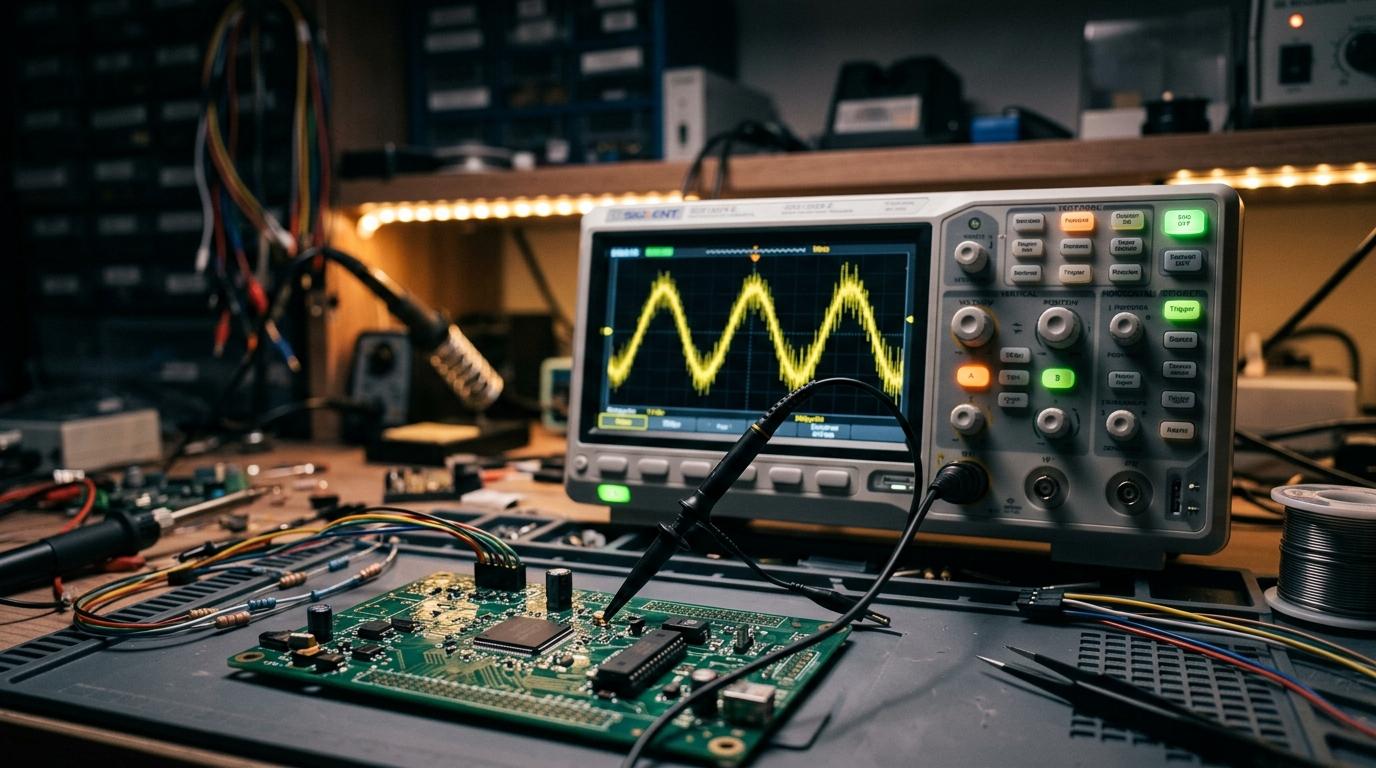

What you're seeing

An oscilloscope displays voltage (Y axis) versus time (X axis). The trace shows how the signal changes moment to moment. From this you can read:

Voltage levels: the amplitude of the signal, both peak and peak-to-peak. You can see if a logic high is actually at 3.3V or if it's drooping to 2.8V under load.

Timing: the period of a repeating signal (and thus its frequency), pulse width, rise time, and the time relationship between two signals (phase).

Signal shape: is a square wave actually square, or does it have slow edges? Is there ringing after transitions? Is there noise riding on a supply rail?

These things are invisible to a multimeter.

Key controls

Volts/div (vertical scale): how many volts per grid division. Set this so the signal fills most of the screen. Too large and the signal is a thin line at the centre. Too small and it clips off the screen.

Time/div (horizontal scale): how much time per grid division. For a 1kHz signal (1ms period), setting 1ms/div shows one complete cycle per division — you'd want maybe 5ms/div to see a few cycles clearly. For a 10MHz signal, you need much faster time bases.

Trigger: the oscilloscope waits until the signal meets a trigger condition before starting the capture. Without triggering, the trace would drift. The basic trigger: rising edge trigger at a set voltage level. Set the trigger level somewhere in the middle of the signal's voltage range and the trace will be stable.

Coupling (AC/DC): DC coupling shows the signal with its DC offset. AC coupling removes the DC component and shows only the AC variation. For viewing ripple on a power supply, AC coupling with high sensitivity shows the ripple clearly.

When you need one

Debugging PWM signals: is the PWM frequency and duty cycle what the firmware set? An oscilloscope tells you in seconds what would take minutes to deduce from behaviour.

Communication buses (I2C, SPI, UART): you can see individual bits, timing, and the relationship between clock and data. Logic analyser mode (with a mixed-signal oscilloscope or a separate logic analyser) decodes the protocol.

Power supply debugging: are there switching transients? Ripple? Is the voltage drooping under load? An oscilloscope shows all of this clearly.

Sensor signal characterisation: how does the sensor output change with input? What's the response time? What's the noise floor?

Entry-level digital oscilloscopes (Rigol DS1054Z, Siglent SDS1102X-E) are available in the ₹20,000–35,000 range and are more than adequate for most maker work. USB oscilloscopes are cheaper but the interface is slower and less convenient for fast debugging.
