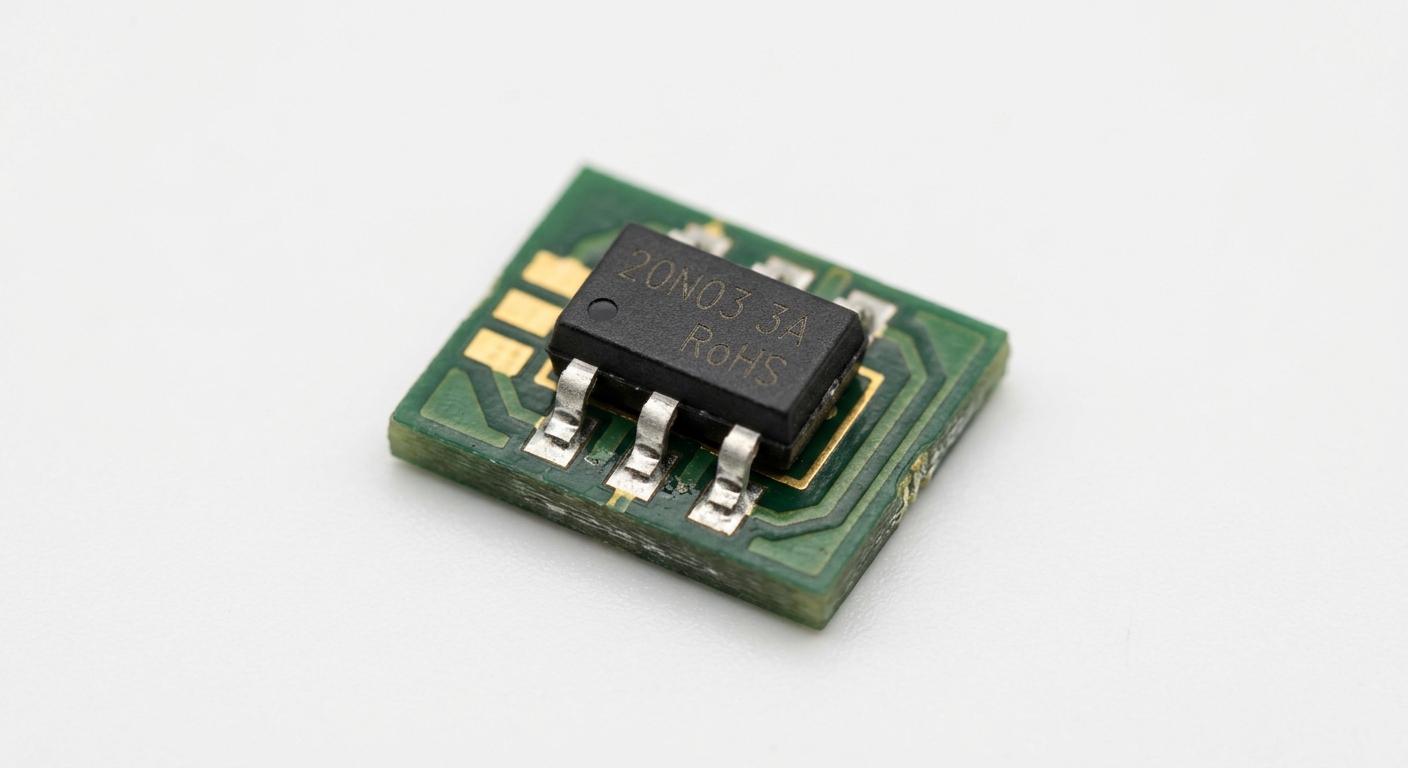

PowerMOSFET
MOSFET
A Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) is a voltage-controlled semiconductor device commonly used in power electronics for switching and amplification. This N-channel variant facilitates current flow from drain to source when a positive voltage is applied to its gate, making it ideal for efficient power management and signal processing tasks. It is widely utilized by engineers and hobbyists in compact electronic designs requiring reliable switching.
2 people viewed this week
Available
10 pcs
Location
Bengaluru, Karnataka
Purchase price
₹8/ unit
D
Dibyaprakash
RoboDIB Maker
You'll be asked to sign in before sending
Technical Specifications
Channel TypeN-Channel
Drain-Source Voltage (Vds)20 V
Drain Current (Id)3 A
Control TypeVoltage-Controlled
PackageSOT-23-6
Typical Dimensions2.9mm x 2.8mm x 1.1mm (LxWxH)
Key Features
RoHS Compliant for environmental safety
Compact SOT-23-6 Package for space-constrained designs
Low On-Resistance for efficient power management and reduced heat generation
Fast Switching Speed for high-frequency applications
Use Cases
- Load Switching: Efficiently turns on and off power to various electronic loads, conserving energy and extending battery life.
- Low-Power Motor Control: Provides precise speed and direction control for small DC motors in portable devices and robotics.
- LED Driver Circuits: Controls current flow to LEDs for dimming, switching, and creating power-efficient lighting solutions.
Applications
- Portable Electronic Devices
- Battery Management Systems
- Compact DC-DC Converters
- Low-Power Robotics
